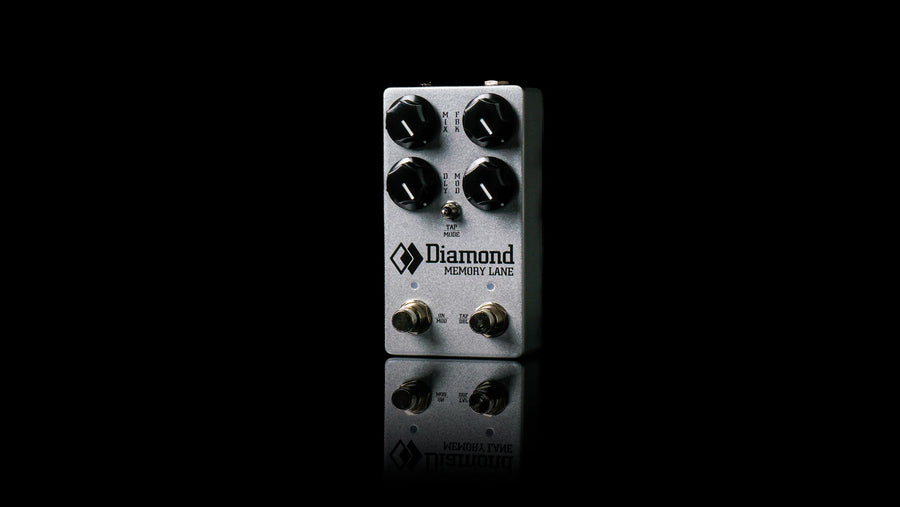

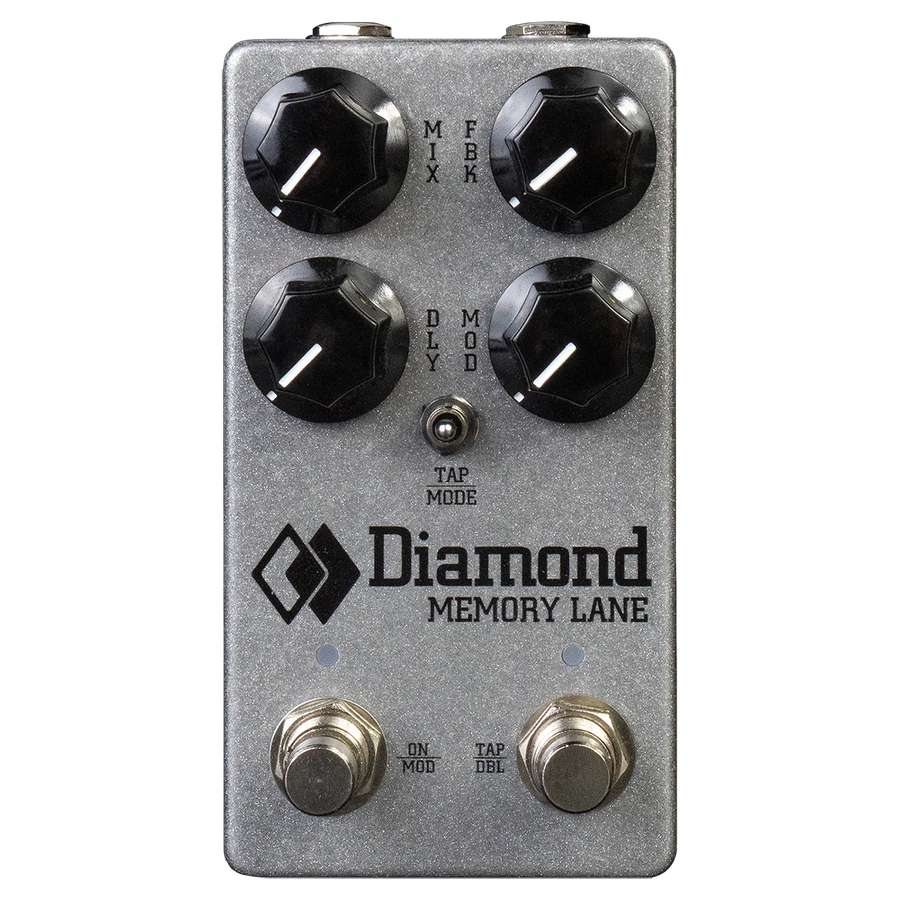

Diamond Memory Lane
Blending analog companding, anti-aliasing|reconstruction filters with a bucket brigade style delay line, we have immaculately captured the ethereal essence of the original big-box Memory Lane using Diamond’s innovative digital Bucket Brigade Delay technology (dBBD). Basically what we’re saying is, you get all the goodness of the original Memory Lane in a smaller footprint, over double the delay time, extended frequency response, higher SNR, and at a fraction of the current draw.
This innovative progression of the Memory Lane is defined by 3 distinct delay lines to offer modern or vintage sounds.
Three Distinct Delay Modes
The Memory Lane's original fixed sampling rate delay line has been augmented with a new warm delay mode offering vintage BBD style variable sampling rate, warmer repeats and a 1200ms maximum delay time for gorgeous ambient delays as well as a new vintage mode designed to capture the magic of analog BBD delay pedals. Variable sampling rate, snappier repeats and 50ms-550ms delay times inspired by yesterday's big box delays.
Input Impedance: > 1MΩ
Output Impedance: < 10KΩ
Switching: Buffered Bypass
Power Requirement: 9 VDC , negative tip, 2.1 mm barrel jack.
Current Draw @ 9 VDC : 45mA
Dimensions: 122 x 66.98 x 39.64 mm (4.8 x 2.64 x 1.58")
Weight: 300 g
