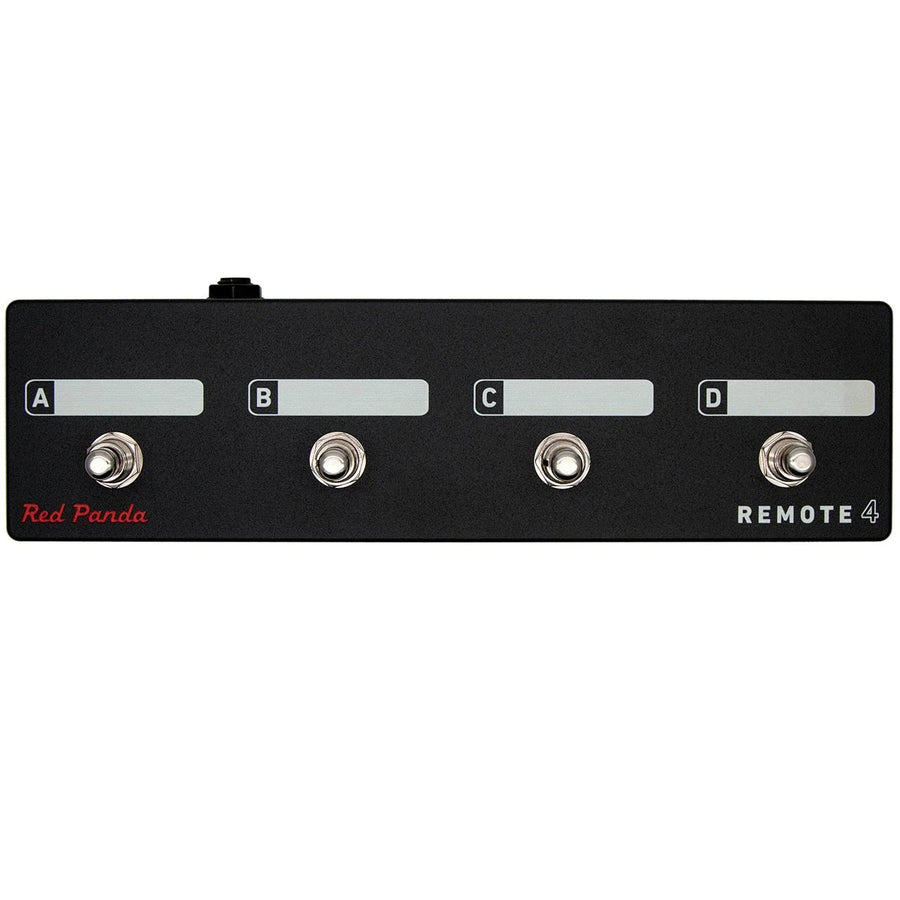

Tensor remote switch with 4 modes to access presets and pedal functions.  Scribble strips above each switch can be labeled with a Sharpie and erased using isopropyl alcohol.

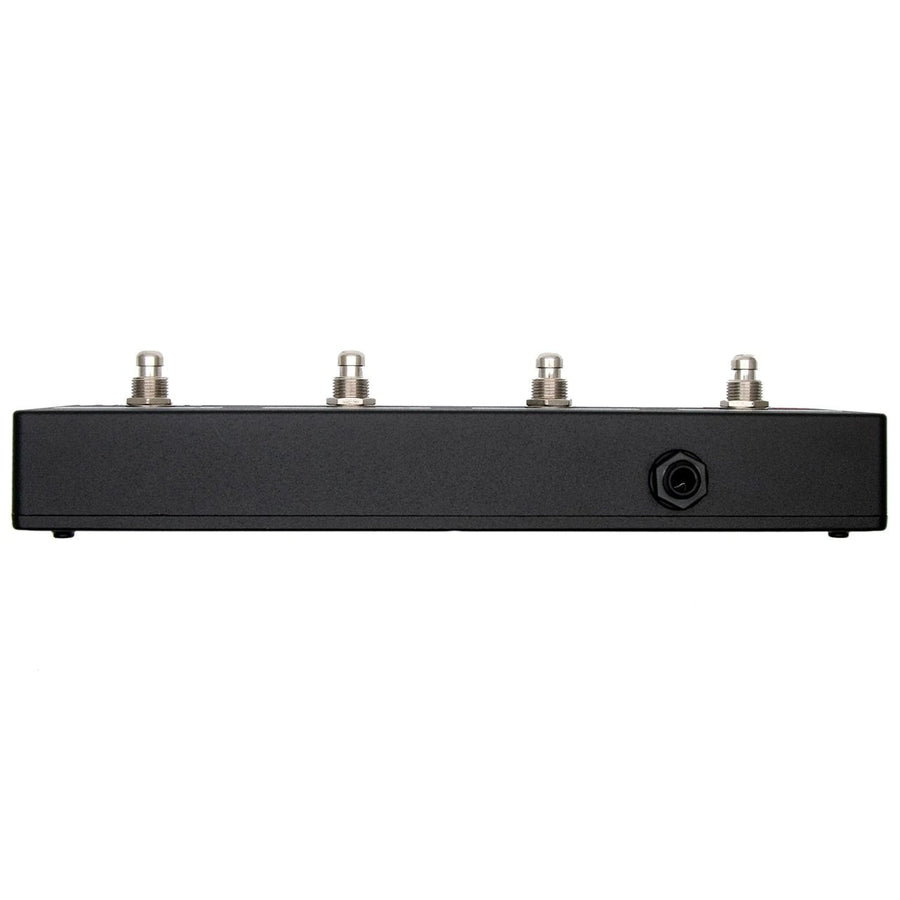

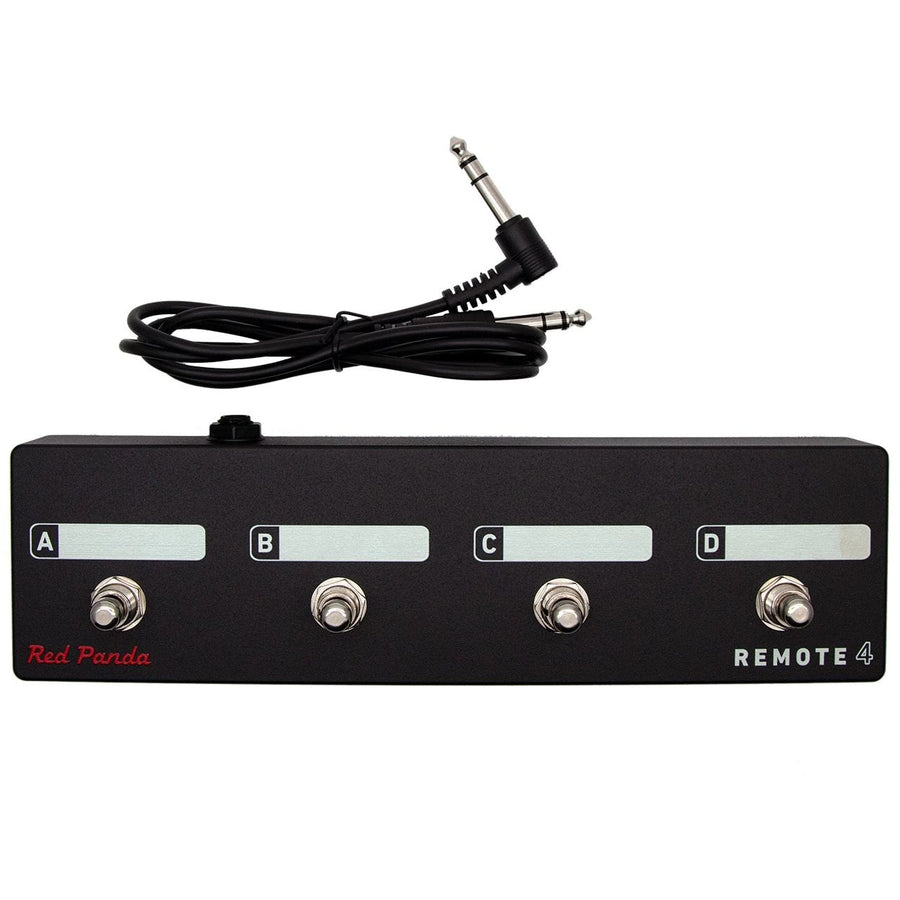

Connects to the Tensor via a 1/4" TRS cable (included).  The Tensor firmware needs to be version 1.1 or later (available here).  The Remote 4 does not require power.

Size: 10" x 2.75" x 2.25" high

Remote switch modes

Loop Sampler (Remote Mode 3)

Mode 3 is designed to use the Tensor as a loop sampler with live loop manipulation. Switches A-C control loop record, overdub, play, and retrigger functions. Switch 4 toggles between the current knob settings and the default (normal playback settings). For example, you can set SPEED to reverse and PITCH to -1 octave for instant access to reverse and half-speed effects.  See the user's manual for complete details.

Configuring the Remote Switch:

1. Start with the pedal powered on and nothing plugged into the CTRL port.

2. Hold the right footswitch while plugging in the remote switch. The right LED will blink yellow 3 times

   to indicate it is in CTRL configuration mode. You can release the right footswitch and begin configu-

   ration immediately.

3. Press one of the buttons on the remote switch to select a mode.

4. Hold the right footswitch for 2 seconds to save the configuration. The right LED will blink green to

   indicate that the configuration has been saved.
