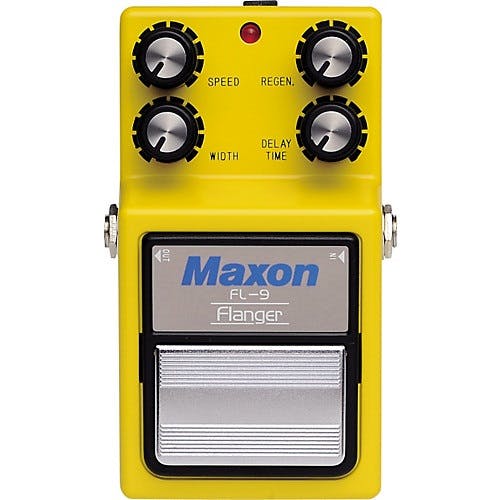

A top-selling model of the original 9-Series, the FL-9's wide operation range and full frequency response allow it to work with any input signal to create a diverse assortment of modulation and time-delay effects. Improved construction including through-hole, glass-reinforced epoxy PCB's, snap-in PCB connectors, and true bypass switching guarantee trouble-free performance while the combination of one Panasonic MN3207 BBD IC and one Signetics NE570 compander provides warm yet crystal-clear flanging with zero clock noise. Rate, Depth and Regeneration controls allow the user to dial in everything from shimmering chorus and vibrato to hollow, metallic overtones to thick, jet-like flanging sweeps.

In addition to these standard controls, the FL-9 features a Delay Time knob that allows for a vast array of all-new spatial effects. The Delay Time control exhibits an inverse relation between the delay time and the frequency shift of the flange - as the delay time increases, the frequency that is shifted decreases. This inverse relation creates an amazingly realistic, three-dimensional flanging effect. In addition, the Delay Time control is interactive with the Rate and Depth controls, so that if you increase the Depth, the Delay Time range increases, and if you increase the Speed, the Delay Time changes faster.

Input Impedance: 500K Ohms

Input Jack: 1/4 inch standard phone jack

Output Impedance: 10K Ohms or less

Output Jack: 1/4 inch standard phone jack

Outputs: 1

Residual Noise: -98 dB or less (input shorted IHF-A weighted)

Delay Time: 1.0 mSec to 12.8 mSec

Speed Frequency: 0.03 Hz to 12 Hz

Controls: Speed, Width, Delay Time, Regeneration

Switch: Normal/Effect (true bypass configuration w/4PDT switch)

Power Supply: 6F22 9V Manganese dry cell battery x1 or Maxon AC adaptor

Power Consumption: 25 mA (9 V) or 25 mA (10 V)

Dimensions (whole): 74 mm (W) x 124 mm (D) x 54 mm (H)

Weight: 580g
