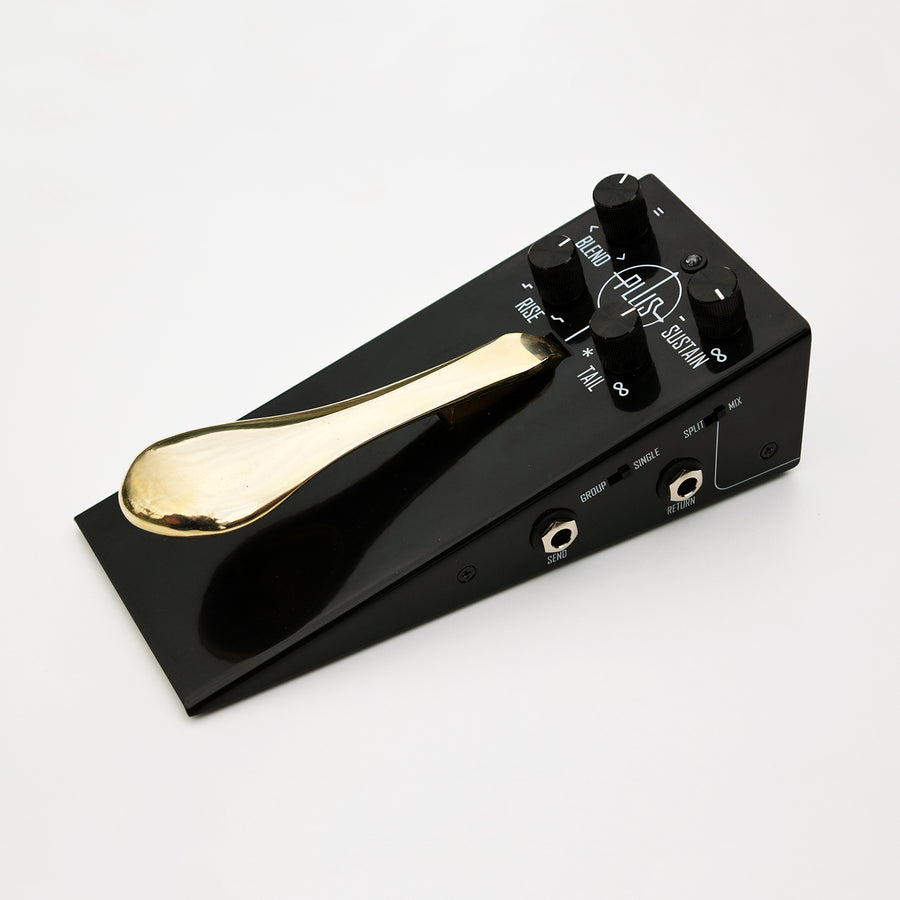

The PLUS pedal is a new kind of audio processing engine that offers piano-style sustain for electric guitars and all other melodic instruments. This is more than just a stompbox – it is a vast extension of your instrument that bridges the gap between rhythm and lead playing and lets players explore totally new territories. Create “impossible” arrangements by playing lead lines on top of sustained chords, combine up to 5 different sounds to build deep multi-layered drones or use the WET only mode to give your instrument a totally new character.
-Full spectrum of sustain controls – 4 knobs (Blend, Sustain, Rise, Tail) allow to modify all parameters of the sustain tones -Multiple layers allow stacking up to 5 notes or chords simultaneously. -Unique design – a brilliant combination of a guitar stomp-box and piano’s damper pedal. The steel case will make sure it lasts, and the classy look will make it fit on any stage, from café guitarist to rock band to jazz trio. -Two Outputs will allow you to use the PLUS with a two amplifier setup or split your effects chain. -Revolutionary FX Loop allows you to link the PLUS Pedal with any other effects unit and use it to modify the Wet or the Dry signal separately.
4 external rotary control knobs - adjust the dynamic properties of
the WET signal generated by PLUS Pedal. (see Section “Knobs And Controls”)
1 two-position slide switch, labeled “SINGLE and GROUP”: Lets you go
between two distinct modes of playing (see Section “Single mode and Group mode”)
1 two-position slide switch labeled “SPLIT and MIX”: Lets you isolate the WET only signal in the PLUS Pedal’s main output.
One ¼ inch Main Input
One ¼ inch Main Output
One ¼ inch Dry Only Output/Footswitch input.
One 9V DC (center negative) power supply input (5.5 x 2.1 mm)
Indication LED (two brightness stages)
Two ¼ inch jack inputs for Effects Loop (labeled Send an Return)
