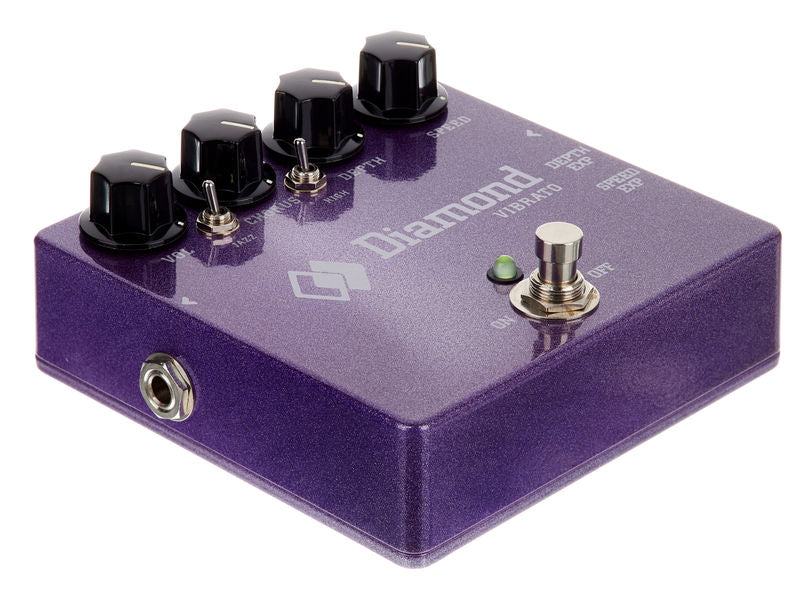

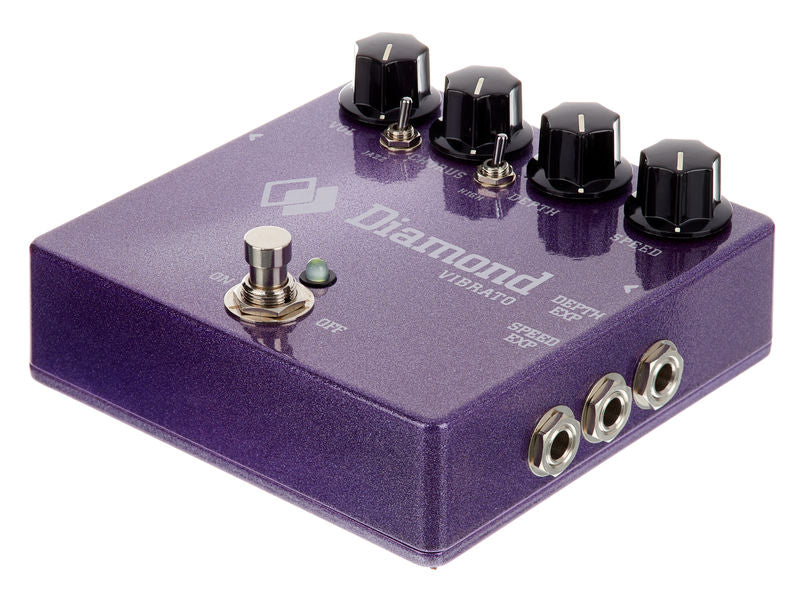

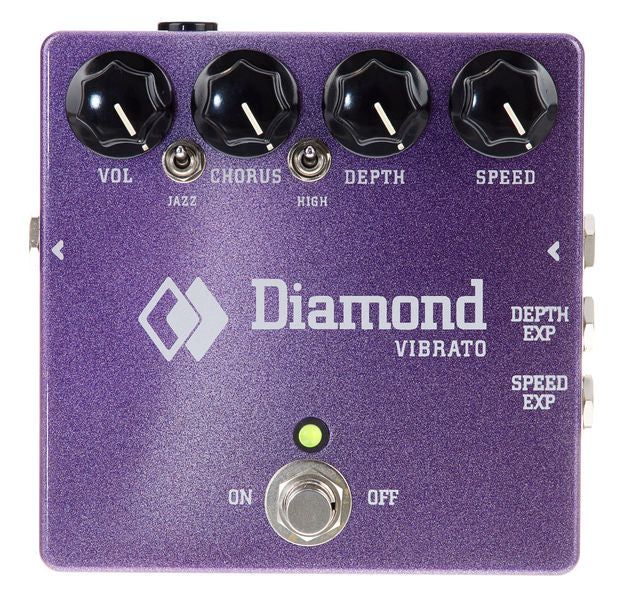

The new Diamond Vibrato is a dedicated pitch vibrato design using bucket brigade analog delay technology for true pitch modulating vibrato. In addition the pedal also offers analog chorusing via the Chorus control to blend a variable amount of dry signal with the effected signal.
We’ve included 2 mini-toggle switches on the Vibrato. The ‘JAZZ’ switch darkens the tone of the effect offering a more ‘vintage’ flavour. The ‘HIGH’ toggle switches to a higher depth range for more extreme pitch bent sounds.
Expression control of depth, and speed for on-the-fly adjustment and special effects. Mono true bypass operation. Extended headroom 15V internal voltage rail operation. NOS MN3007 bucket brigade delay chips.
Please note: The Diamond Vibrato is a true vibrato – not a Univibe (phase shifter) or a tremolo (often incorrectly referred to as vibrato). The terminology can be confusing to say the least!
Dedicated true pitch vibrato using MN3007 analog bucket brigade design
‘magic-eye’ bi-colour LED shows vibrato LFO rate even when bypassed
True bypass operation
Ultra smooth sine-wave LFO
‘HIGH’ switch for increased Vibrato depth
‘JAZZ’ switch for a darker, ‘vintage’ tone
Extended headroom internal 15V rails, can be operated from guitar and FX loop levels
All analog circuitry with VIshay JFET’s, Burr-Brown audiophile opamps and Panasonic polyprop caps in the signal path
Variable Chorus control for blending dry signal with pitch shifted signal
Mono in/out operation
Expression pedal control of vibrato depth, allowing the player to manually swell the vibrato effect without changing overall volume
Expression pedal control of vibrato speed
Internally regulated to 15V, can be run from provided 18-24V adapter or from 18V pedal board power supply outputs (including Y-cable powering from 2 9V outputs on most pedal power supplies)
Genuine Hammond cast aluminium 4.7 x 4.7 x 1.3 inch case
