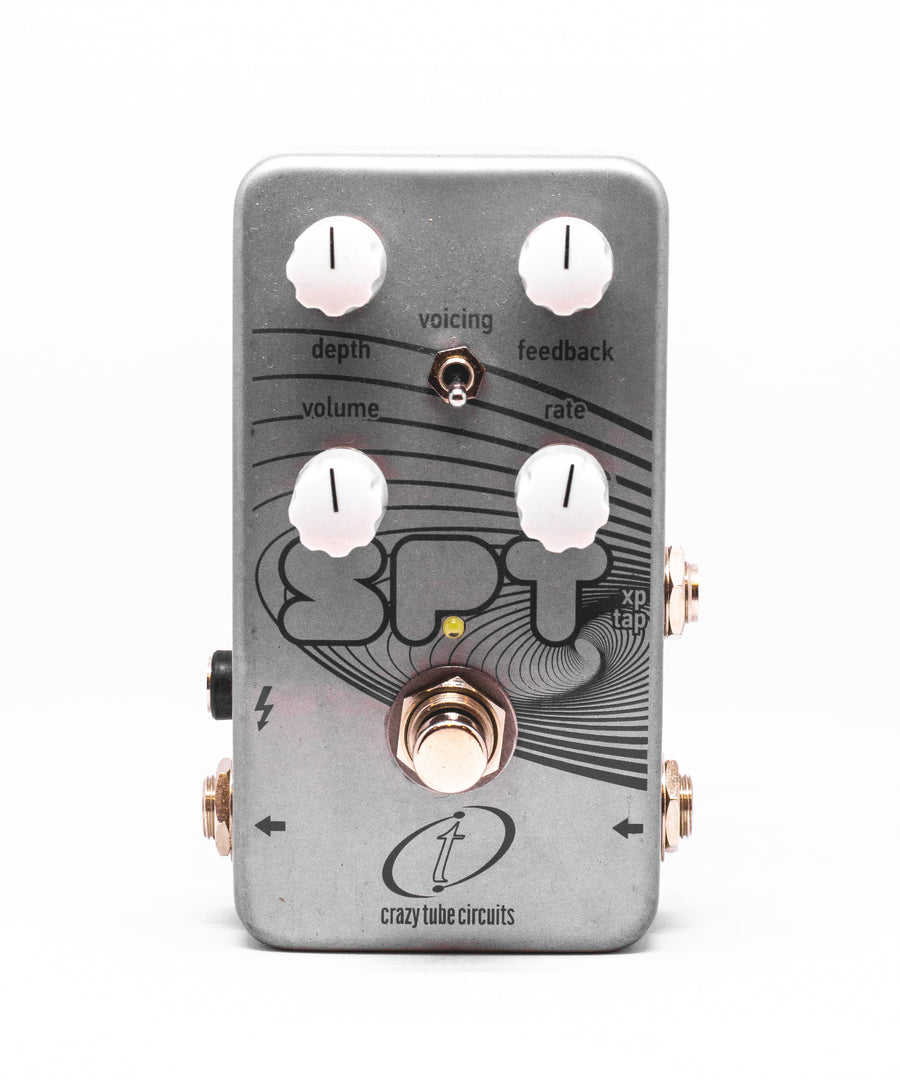

Phase / vibe tones in a small pedal format. An all analog circuit featuring 4 OTA stages with selectable frequency peaks (voicing switch) for classic phaser sounds or swirling rotary-type effect.
A carefully designed half sine / half triangle LFO gives proper modulation vs. time control not found in conventional phaser pedals. In phaser mode the interactive depth and feedback controls allow the pedal to morph from a mild sweep of a 2 stage phaser to a deep mind- blowing phase shifter on the verge of oscillation. In vibe mode the feedback control emulates the change of the rotating speaker and cabinet dimensions which in result gives different frequency response on the rotary, moving sound.
We have also added an expression pedal / tap tempo input jack for extreme versatility and control in a live situation.
Volume Master Volume of the pedal
Depth Controls the depth/intensity of phaser/ vibe
Feedback Sets the feedback and voicing of modulated signal
Speed Sets the speed of the LFO. From 0,05Hz (min) to 13Hz(max)
Voicing toggle switch Select between phaser (up position) or vibe/rotary (down position)
Expression pedal/tap tempo input You can use this input to connect an expression pedal or an external tap tempo pedal to control the speed of the LFO
Depth Trim Locate the trim hole above the xp/tap pcb switch. Use a mini cross screwdriver to adjust maximum depth of the modulated signal
Bypass Footswitch True bypass your effect
Built with the highest quality components available, operates with external 9-12V DC regulated power supply (centre negative). Max current consumtion 13 mA at 9V DC.
Using a power supply of +15V DC or more may cause severe damage to the pedal and void warranty.
