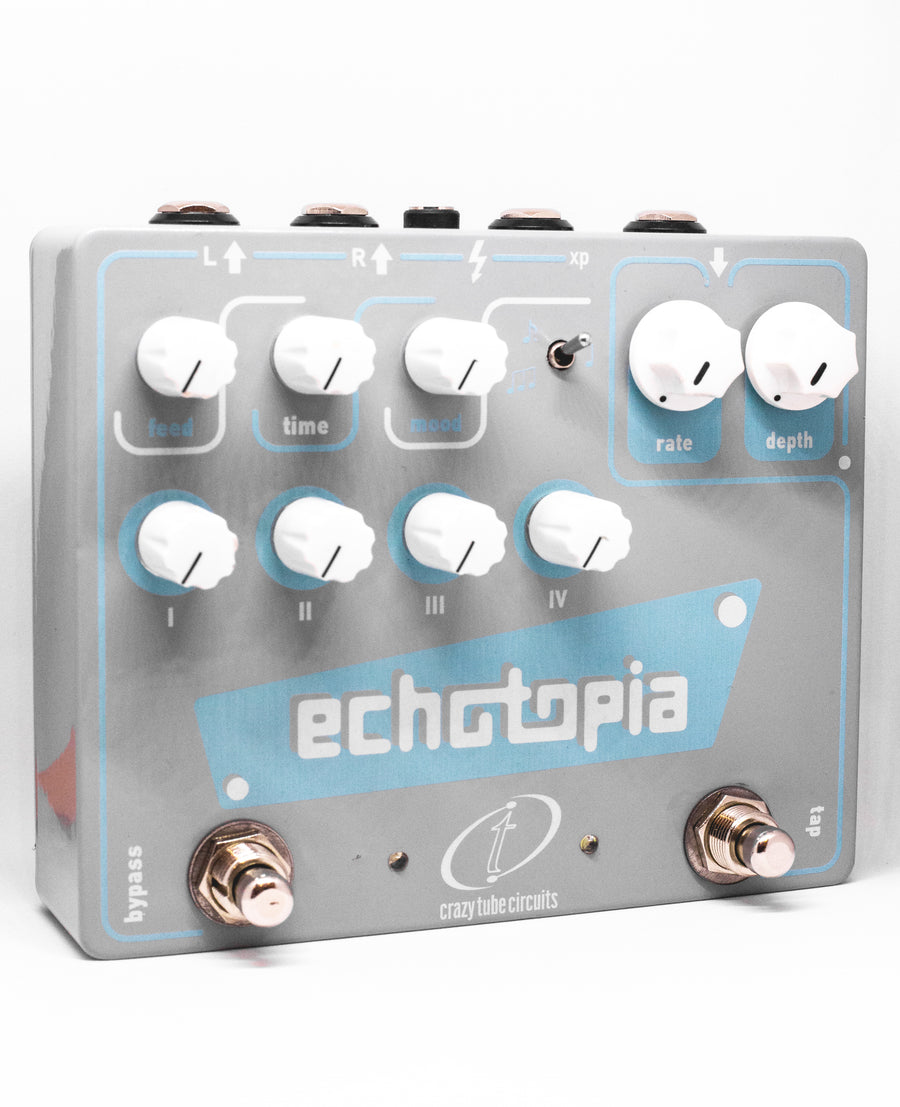

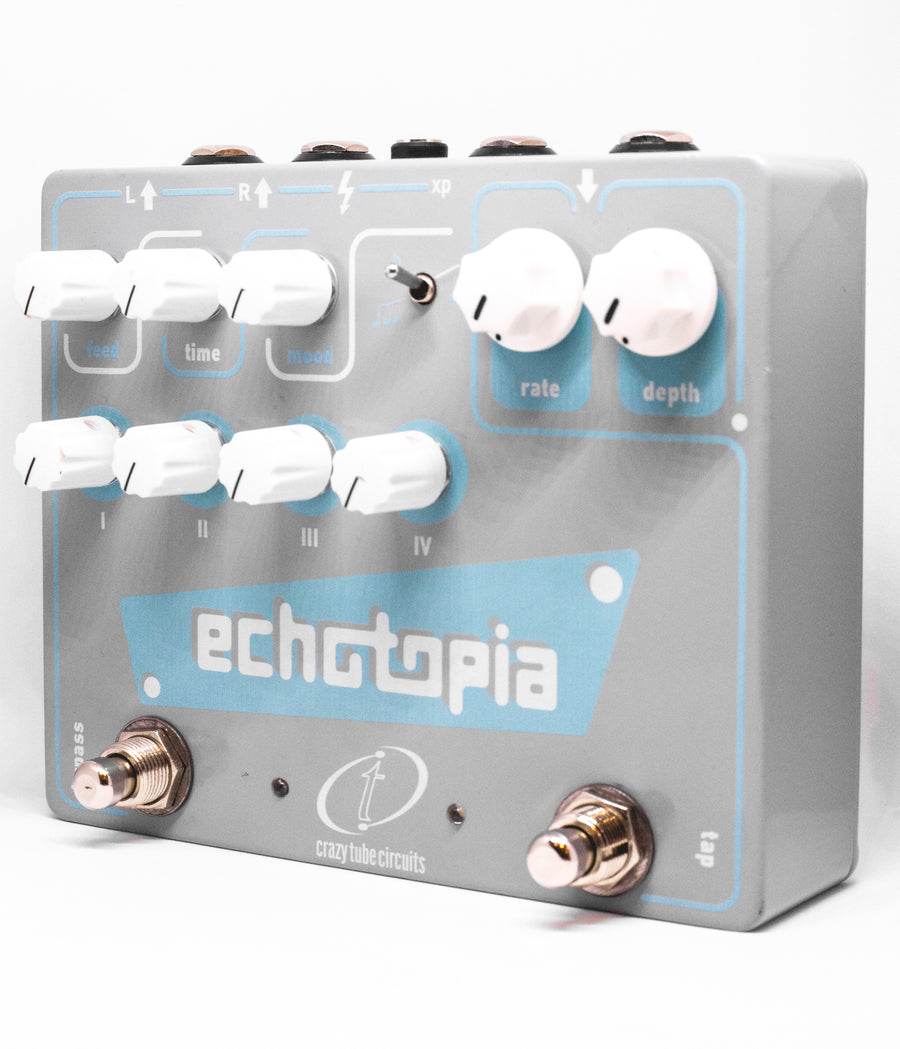

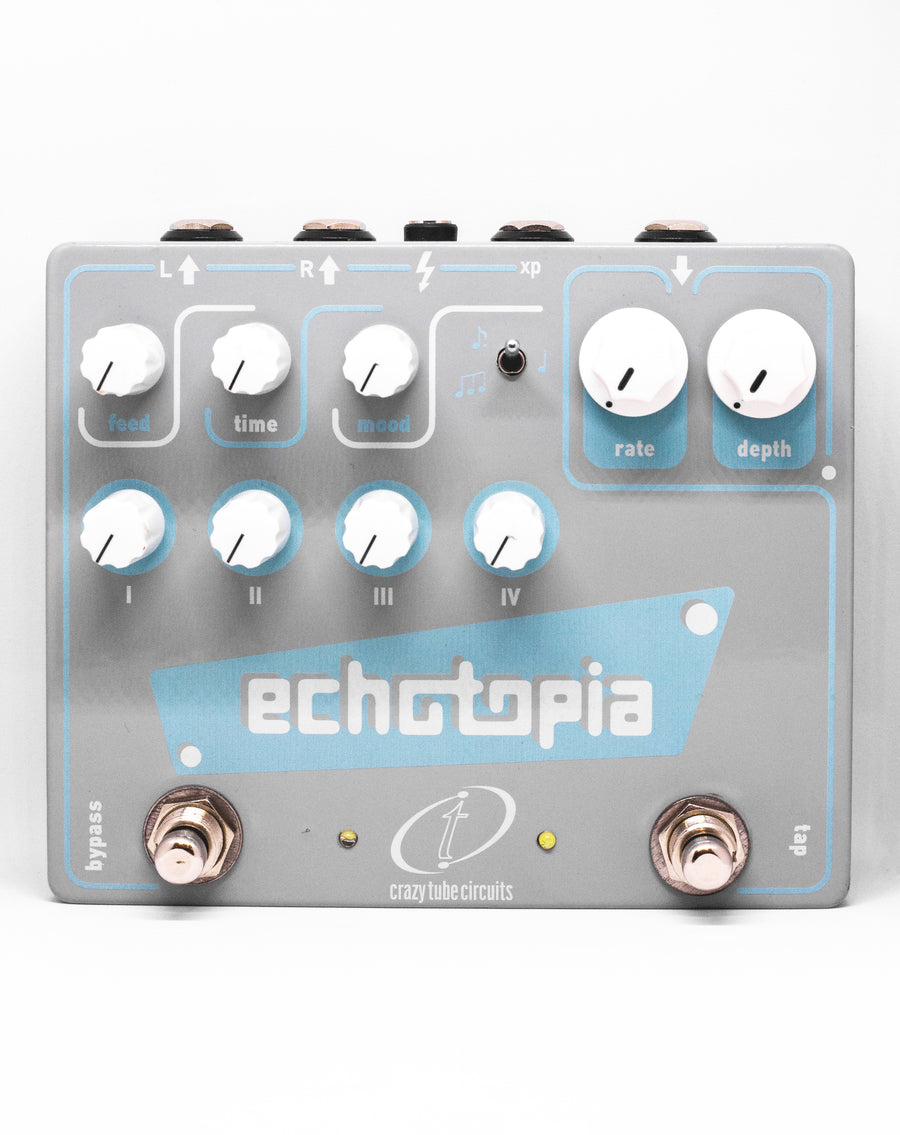

With that in mind we designed a mono in - stereo out, retro tape echo style delay with 4 heads, each with its own mix/feedback control for the ultimate rhythmic patterns.
Features controls for delay time (40ms for head “I” up to 1200ms for head “IV”), echo feedback, mood – tone of the repeats, rate and depth for sine wave modulation.
Tap tempo / instant oscillation footswitch and expression control for master mix or feedback adds extra flexibility making the effect ideal for live situations.
Mono or stereo ping pong output operation: Internal switches set which head goes left or right and a smart true bypass mono/stereo operation puts automatically all heads in master output (L) when used in mono.
Create the soundscapes of your dreams!
I-IV Separate mix/feedback for each head Feedback Adjust the number of repeats. Maxed up the pedal will oscillate (with mood at the maximum settings) Time Adjust the delay time for each head:
40-300ms for head "I"
80-600ms for head "II"
120-900ms for head "III"
160-1200ms for head "IV" Mood Control the tone of repeats, dark all the way down - brighter as you turn clockwise Rate Adjust the rate of sine wave modulation Depth Adjust the depth of sine wave modulation. All the way down (counterclockwise) modulation is off Bypass footswitch True bypass (relay operated) your effect Tap tempo footswitch Set the time between repeats according to tempo for head "IV". The last two taps will be stored to give the desired tempo. You can set the time either with tap footswitch or time knob. Hold down tap footswitch to enter hold mode Division toggle switch Choose the function of tap tempo between quarter, dotted eighths and triplets XP Expression pedal input. Plug a TRS expression pedal (with up to 100k linear pot value)
